HSP universal cabinets

Wide range of universal metal cabinets - durable, aesthetic and functional furniture for warehouse, office, archive, workshop etc:

  • made of sheet steel, protected against corrosion, powder coated
  • fitted with shelves or with shelves and drawers

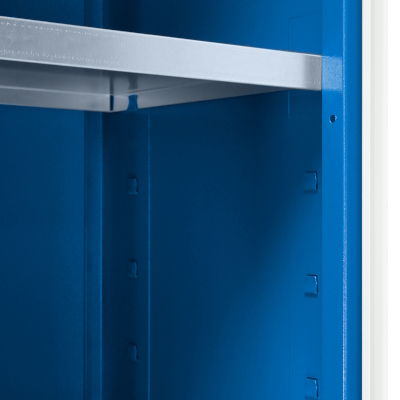

  • height-adjustable shelf mount

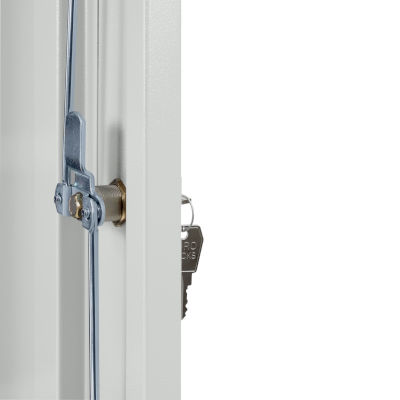

  • 2 or 3 point doors locks - depending on the cabinet model
  • Master Key system locks
  • cabinets on feet or sliders
  • available in multiple size options
  • selected cabinet models can be supplied in elements for self-assembly (easier to carry the cabinets into hard-to-reach places).
Universal cabinet with PMMA door

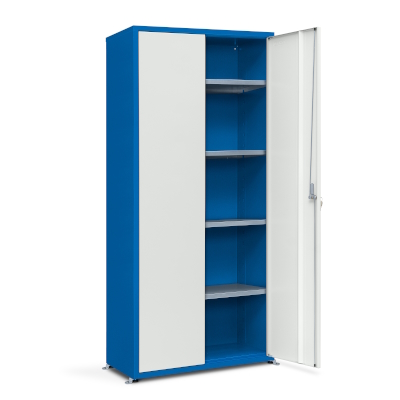

Universal cabinet
with PMMA door

 » See details
Cabinet  for heavy loads

Cabinet
for heavy loads

     » See details
Tool cabinet with perforated pull-out panels

Tool cabinet with
perforated pull-out panels

 » See details
Universal cabinet with perforated: 2 painted shelves, 1 large and 1 small drawer set, perforated boards

Universal cabinet
with perforated

 » See details

Heavy duty cabinets

Heavy duty cabinets: durable, functional. Recommended for tool rooms, warehouses, workshops, etc. - wherever it is necessary to store heavy items.

  • the structure of the wardrobe, shelves and drawers made of steel sheet, painted with powder paints
  • overall dimensions (W x H x D) 1080 x 1950 x 635 [mm][mm]
  • maximum load capacity of the cabinet: 800 kg
  • load capacity of the shelf and drawer: 100 kg
  • shelves with adjustable suspension height every 55 mm
  • drawers on ball bearings
  • door closed with two-point cylinder lock with a key and a knob

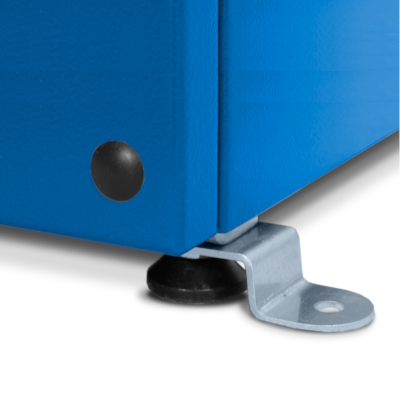

  • adjustment feet for easy leveling of the cabinet and fixing to the ground

    NOTE: The cabinet must be secured to the ground. We recommend that you pull out no more than one drawer at a time.

Four models on offer:

  • Heavy duty cabinet with four shelves.
  • Three models of wardrobes with very durable drawers and shelves.

Heavy duty cabinets - dimensions
Heavy duty cabinet Cat. No. 23322

Heavy duty cabinet
Cat. No. 23322
.

 » See details
Heavy duty cabinet Cat. No. 23323

Heavy duty cabinet
Cat. No. 23323
.

 » See details
Heavy duty cabinet Cat. No. 23324

Heavy duty cabinet
Cat. No. 23324
.

 » See details
Heavy duty cabinet Cat. No. 23325

Heavy duty cabinet
Cat. No. 23325
.

 » See details

Roller shutter cabinets

Universal roller shutter cabinets: durable, aesthetic and functional. Ideal for office, archive, warehouse, workshop. In a two-chamber version recommended as tool cabinets:

  • cabinet structure made of sheet steel, powder coated
  • Overall dimensions (W x H x D) 1000 x 1938 x 460 [mm]
  • load capacity of the cabinet: 300 kg
  • cabinet closed with a roller shutter in the right-left direction
  • security of the stored items is ensured by the key lock
  • adjustment feet make it easy to level the cabinet and fix it to the floor

Three models on offer:

  • Universal cabinet equipped with four wide shelves.
  • Universal cabinet divided into two chambers. Four shelves in the wider chamber. In the narrower part of the cabinet, there is a perforated panel on the back wall which allows to mount a clothes hanger or tool hooks and hanging containers for small items..
  • Specialist cabinet - for storing toolholders for CNC machine tools. It can be equipped with shelves with different types of sockets for storing toolholders, flat shelves and drawers.

Roller shutter cabinet
Roller shutter cabinet with wide shelves Cat. No. 26301

Roller shutter cabinet
with wide shelves
.

 » See details

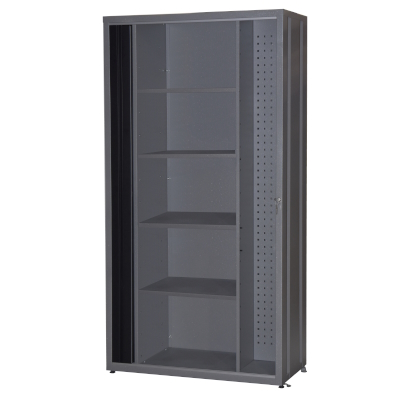

Roller shutter cabinet with narrow shelves and perforated panel Cat. No. 23602

Roller shutter cabinet
with narrow shelves
and perforated panel

     » See details

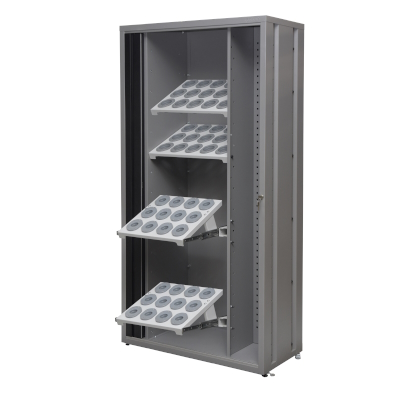

CNC toolholder cabinet with roller shutter Cat. No. 26303 - sample configuration

CNC toolholder cabinet
with roller shutter
example configuration

 » See details

Tool cabinet with perforated pull-out panels

Cabinet made of sheet steel, powder coated, welded construction.

Inside the cabinet, there are four double-sided pull-out panels with perforated boards for hanging tools.

The cabinet should always be fixed to the floor.

It is equipped as standard with adjustment feet for levelling and fixing.

Cabinet with perforated pull-out panels

Pull-out panels with perforated boards

  • square perforation in the boards allows to mount hangers for tools and hangers with containers for small items,
  • number of panels: 4 pcs,
  • panel spacing every 188 mm,
  • total surface area for hanging tools: 7 m2,
  • maximum load on the panels: 40 kg,
  • maximum load on the cabinet: 200 kg,
  • cabinet weight 160 kg.

NOTE! The maximum load capacity of the panels should not be exceeded. Distribute the weight evenly on both sides.

Pull-out panels on telescopic runners



At the bottom of each panel, a height-adjust wheel is fitted, making it easy to level the pull-out panel

Wheel with height adjustment system
Perforated pull-out panels
Pull-out panel levelling

Universal cabinets with shelves, drawers and perforated boards

The perfect solution for workshops, assembly stations and warehouses.
They make it easier to organize the stored tools, consumables, etc.

The range includes cabinets with different configurations of drawers, shelves and perforated boards for mounting tool hangers and containers for small items.

  • cabinets made of sheet steel, welded construction, powder coated

  • overall dimensions (W x H x D) 800 x 1800 x 380 [mm]

  • door with 2-point locking

  • load capacity of the cabinet depending on the model 400 - 450 kg (while maintaining the permissible load capacity of individual drawers and shelves)

  • standard cabinets are supplied on slides, version on adjustment feet with the possibility of fixing to the floor against an extra charge

  • cabinet should be bolted to the floor or wall
Universal cabinet with shelves - dimensions

1) perforated board for mounting on the rear panel:

  • Cat. No. 23179
  • dimensions: width: 734 mm x 340 mm high
  • maximum load capacity of the board: 10 kg
  • up to 5 perforated boards can be mounted in the cabinet
Perforated board for mounting on the rear panel

2) perforated board for mounting on the inside of the door:

  • Cat. No. 23178
  • dimensions: width: 342 mm x height: 1653 mm
  • maximum load capacity of the board: 10 kg
  • the boards for right and left doors are identical
Tablica perforowana montowana na drzwiach szafy uniwersalnej

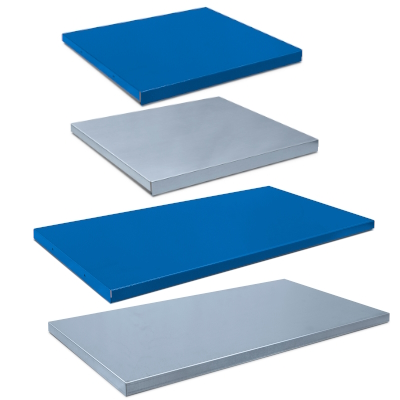

3) shelves:

  • painted shelf - Cat. No. 23177
  • galvanised shelf - Cat. No. 23176
  • dimensions: width 779 mm x depth 333 mm
  • maximum load capacity of the shelf: 80 kg
Universal cabinet shelves 785mm

4) drawers:

  • mounted on ball bearing runners
  • full extension (300 mm)
  • mounted on ball bearing runners
  • load capacity of the drawer: 40 kg
  • grouped into two sets: small and large
  • by assembling several sets of drawers, they can be placed in a cabinet directly above each other or alternatively with shelves and perforated boards
  • possibility of installing sets of drawers in different heights with 30 mm steps
  • the entire cabinet can be fitted with drawers

small set of drawers:

  • Cat. No. 23175
  • height: 240 mm
  • drawer „60” – 1 pc.
  • drawer „180” – 1 pc.


large set of drawers:

  • Cat. No. 23174
  • height: 600 mm
  • drawer „60” – 1 pc
  • drawer „120” – 1 pc
  • drawer „180” – 1 pc
  • drawer „240” – 1 pc
Universal cabinet - 2 galvanized shelves 1 large set of drawers:

Universal cabinets with a set of perforated internal doors:

4 models of cabinets equipped with additional (internal) perforated doors on which tool hangers can be mounted.

Universal cabinet - 2 galvanized shelves internal perforated door set

Universal cabinet
(2 galvanized shelves,
internal perforated door set)

 » See details
Universal cabinet - 2 powder-coated shelves, internal perforated door set

Universal cabinet
(2 powder-coated shelves,
internal perforated door set)

     » See details
Universal cabinet-galvanised shelf, large set of drawers: , internal perforated door set

Universal cabinet
(galvanised shelf,
large set of drawers: ,
internal perforated door set)

 » See details
Universal cabinet -powder coated shelf, large set of drawers: , internal perforated door set

Universal cabinet
(powder coated shelf,
large set of drawers: ,
internal perforated door set)

 » See details

The standard cabinet with a set of perforated internal doors is provided with:

  • set of inner perforated doors (maximum load capacity 15 kg)
  • perforated boards on the back panel of the wardrobe (5 pieces) and on the door (2 pieces)
  • 2 shelves (cabinets Cat. No. 23136, 23196) or large set of drawers
    and one shelf (cabinets for Cat. No. 23197, 23198)
  • load capacity of the cabinet from 305 to 325 kg
Universal cabinet with a set of perforated internal doors
