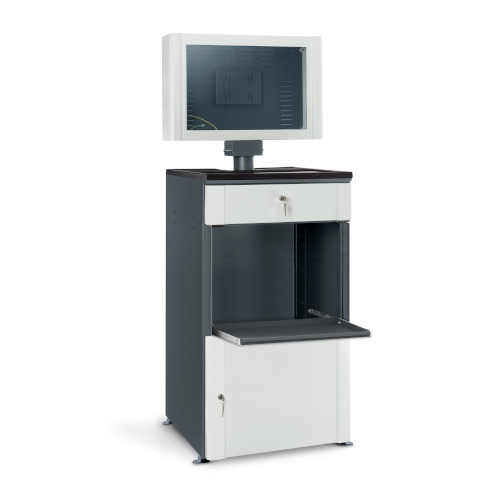

Metal cabinet for a computer HSC02 - for a 22 "LCD monitor

JOTKEL|23576| Metal cabinet for a computer HSC02 - for a 22 "LCD monitor
Manufacturer:
JOTKEL
Cat. No.:
23576
Netto price:
 3 100,00   PLN/ pcs.
Standard colours - Cabinet's housing
RAL 7016
RAL 5005
Standard colours - Doors and drawers
RAL 6018
RAL 7035
PropertyValueJM
overall width662mm
overall height1725mm
overall depth605mm
Weight51kg
outer dimensions of the upper cabinet chamber (W x H x D):662 x 463 x 140mm
inside space available for monitor installation
(W x H x D) [mm]		600 x 440 x 80mm
monitor window (W x H)542 x 370mm
usable dimensions of a sliding drawer for a keyboard and a mouse (W x D):495 x 328mm
the size of the monitor that can be placed in the closet 24 "
wymiary wewnętrzne (użytkowe) komory na drukarkę (szer. x wys. c x głęb)505 x 365 x 513mm
nośność wysuwanej półki pod drukarkę30kg
wymiary wewnętrzne komory dolnej zamykanej drzwiami (szer. x wys. x głęb.)595 x 430 x 540mm
IP32
Product description

  • Replaces computer cabinet art.23521.

  • Metal cabinet for an industrial computer. Protects against dust and moisture. IP 32. It has a convenient desktop for keeping notes.

  • - a solid, durable version of an industrial cabinet
  • - steel structure, powder painted
  • - protection against dirt and unauthorized access (IP 32)
  • - possibility to place a LCD monitor up to 22 ”
  • - LCD monitor mount compatible with the VESA standard (75 x 75 mm and 100 x 100 mm)
  • - adjusting the angle of the monitor housing up to 35 °
  • - the ability to rotate the monitor housing around its axis in the range of 85 ° left and 85 ° right
  • - tempered glass pane installed in the door of the upper chamber

  • - drawer for the keyboard and the mouse is located in a separate compartment closed with a key

  • - lower compartment locked with a key, equipped with a shelf with adjustable height (possibility of installing more shelves)
  • - possibility of installing a fan with a dust filter (catalog number 23518)
  • - cabinet closed with cylindrical locks in the Master Key system
  • - practical cable glands
  • - massive worktop with a profiled ABS overlay
  • - adjustment feet for leveling the cabinet

  • - available version of the cabinet equipped with 50 mm wheels and a handle for easy movement
Optional equipment
 Nr. kat.Nazwa
23518Fan with a power strip
