PIPES AND SECTIONS BENDING

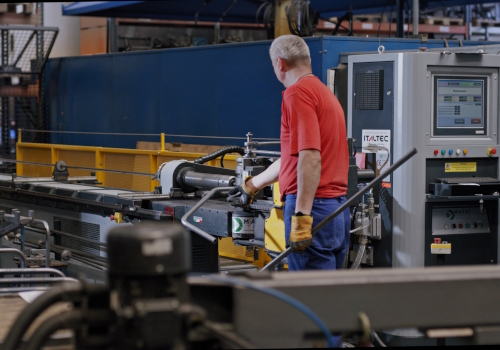

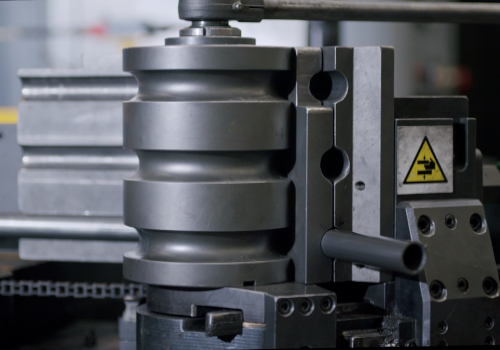

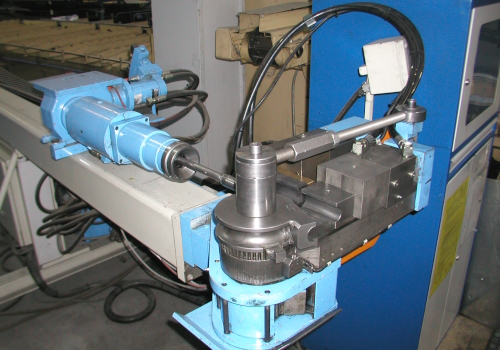

Parameters for mandrel bending:

  • max. pipe diameter x wall thickness 48 x 2.6
  • for square profile 40 x 40 x 2
  • for shaft ϕ 30
  • for square rod 25 x 25
  • max. bending radius 228 mm; max. bending angle 195 degrees
  • bending length up to 6
Jotkel Bending pipes and profiles

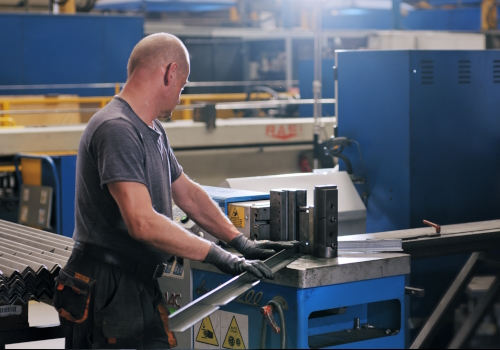

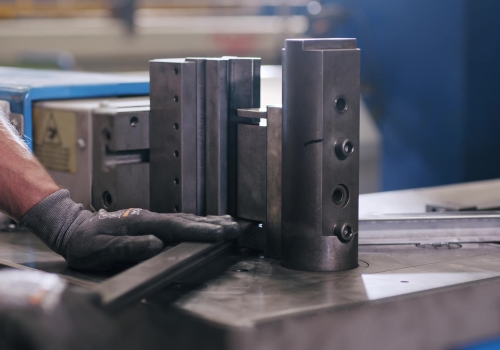

Parameters for 3-roll bending:

  • max. pipe diameter 88.9 x 4
  • for square profile 80 x 80 x 5.6 at min. bending radius
  • R min 750
  • for flat bar (side bending) 120x40 at R min 400
  • (side bending), 100x15 R min 620 (side bending)
  • for roller ϕ 65
  • dfor square rod 50 x 50
View 1 - Jotkel - bending pipes and profiles
View 1 - Jotkel - bending pipes and profiles
View 1 - Jotkel - bending pipes and profiles
