CNC sheet steel bending

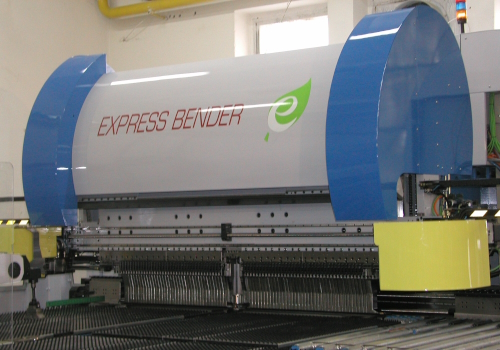

BENDING CENTRE FINN POWER BCe4

  • Maximum bending line length 2150 mm
  • Min. bending length (between side bends) 350 mm
  • Min. width (between side bends) 160 mm
  • Length of the bent workpiece (min / max) 350 / 2450 mm
  • Width of the bent workpiece (min / max) 180..1500 mm
  • Maximum workpiece diagonal 3000 mm
  • Maximum bending height 200 mm
  • Maximum return bend (negative) 55 mm
  • MMaximum thickness of bent sheet: ST 37 steel (max) 2,5 mm
  • Stainless steel (max) 1,8 mm
  • Aluminium (max) 3,5 mm
  • Minimum sheet thickness 0.5 mm
  • Min. outer radius of the bent workpiece
  • 1.5…2 x grubość blachy
  • Maximum bending angle- 135°/+135°
  • Number of bends - unlimited
  • Control NCSiemens Sinumeric 840D NC

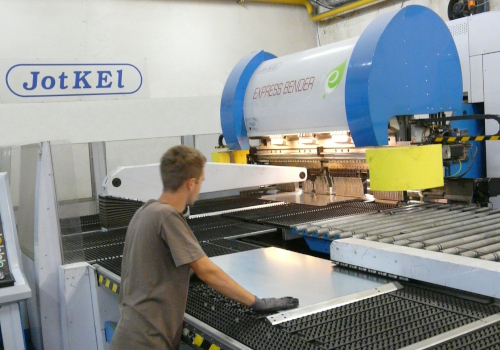

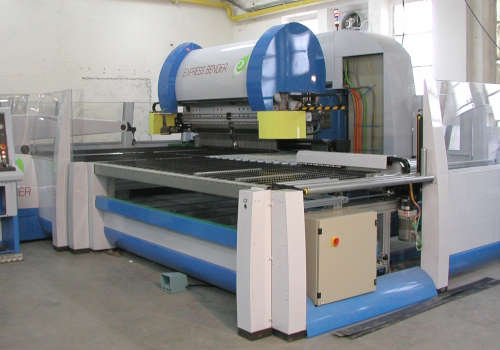

CNC sheet bending - Bending center Finn Power BCe4

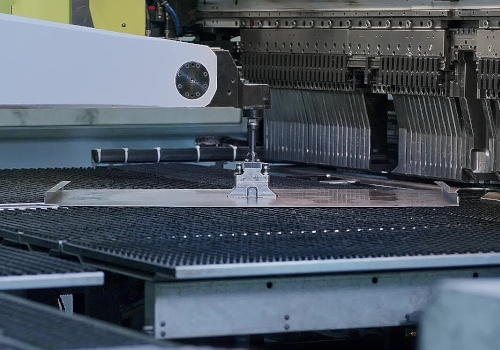

Bending center Finn Power BCe4 - detal 1
Bending center Finn Power BCe4 - detal 2
Bending center Finn Power BCe4 - detal 3
Bending center Finn Power BCe4 - detal 4

Equipment:

  • ATC - automatic tool changing version of TCS - allows automatic change of the upper tool, which allows for maintenance-free operation for a long period of time. This function also allows automatic retooling during the bending cycle.
  • CLL for ATC - reverse bending sequence - in a standard bending cycle, the short sides of the workpiece are bent first and the long sides are bent next. CLL offers the possibility of reversing this sequence and starting the bending from a longer side. The CLL works by creating two separations in the top tool. These gaps may be symmetrical or asymmetrical depending on the needs and complexity of the element.
  • ASP 2 - 2 additional short bending blades (2 independently programmable axes) - allows for easy installation of special tools required for a special production process. So-called 'short bending blades' can be useful for bending workpieces that require partial bending, not necessarily in the same bending line, With this option, both negative (bottom) and positive (up) bending can be performed. ASP can be automatically activated or deactivated during the bending cycle. Positioning is performed by programmable axes
  • CNC IEU - integrated engraving unit - a tool in the form of a forming roll. It is used to make a groove (notch) in the sheet to facilitate subsequent bending operations along the notched line. The IEU becomes very useful when bending closed sections AUT - the additional AUT top tool changes the top tool by lowering an additional special tool below the standard top tool segments. AUT becomes necessary when the negative bending line to be reached is covered by the previously bent profile. This option is also useful for components requiring large bending radii or for closed sections. .

SAFAN BENDING BRAKES

  • Model E-Brake 150-3100, max bending length 3100 mm, max load 150 tons, 6-axis 3D bumper system, automatic workpiece thickness measuring system
  • Model E-Brake 150-3100, max bending length 3100 mm, max load 150 tons, 5-axis bumper system, automatic workpiece thickness measuring system
  • Model E-Brake 200-4100, max bending length 4100 mm, max load 200 tons, 6-axis 3D bumper system, automatic workpiece thickness measuring system

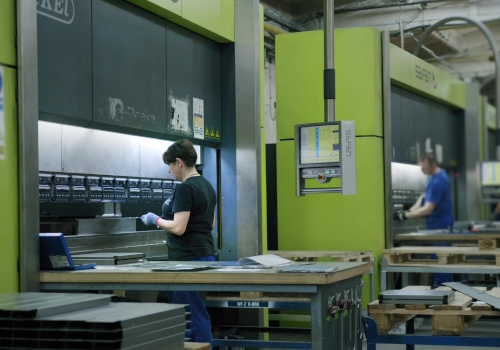

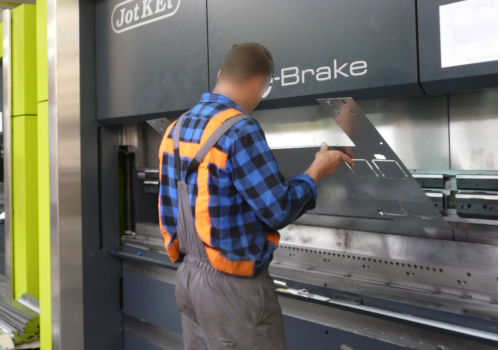

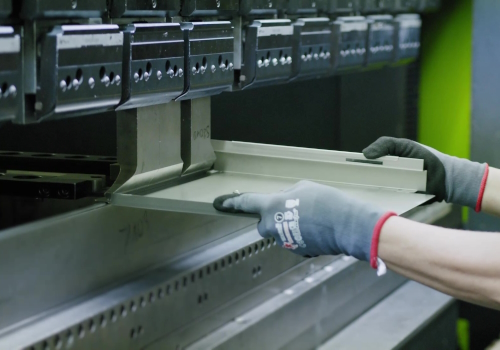

Sheet metal bending CNC - Edging machines SAFAN

EHT BENDING BRAKE

  • load 1500 kN
  • max. bending length 3500 mm
  • CNC control
  • 9 programmable axes
  • max. bending length 3000 mm
  • CNC control
Press brake EHT

DURMA AD-S 2060 bending brake

  • Load 60 T
  • Bending length 2050 mm
  • CNC control CYBELEC ModEva 10S with graphics
  • 4 programmable axes

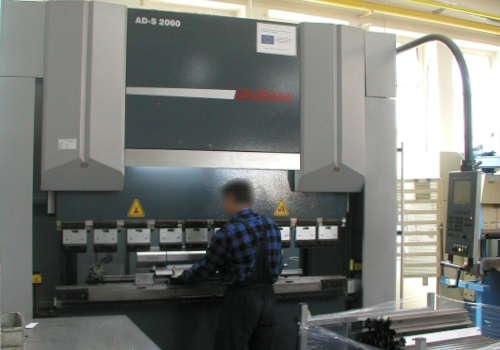

Press brake DURMA AD-S 2060

FASTI SHEET BENDING MACHINE

  • bending length 2500 mm
  • CNC control
  • bumper programming range up to 3000 mm
Sheet metal bending machine FASTI
