Basic specifications:
- Manufacturer: IDEAL - LINE A/S,
-
Year of construction: 2009,
-
Line speed: up to 0.9 m/min,
-
Maximum dimensions of the workpiece: 2500x1300x600 [mm].
The painting line consists of the following modules:
1. Degreasing system:
- with simultaneous phosphatisation,
-
a set of scrubbers equipped with a water demineralisation station,
-
curing oven (0–120℃).
2. Painting system:
- automatic booth for CORONA powder coating equipped with guns mounted on two robots,
-
manual gun (all GEMA OPTISELECT type) and fully-equipped powder bins,
-
cyclone for powder recovery.
3. Curing system (powder coating polymerisation):
- continuous oven - process temperature: max. 200℃.
Additional features:

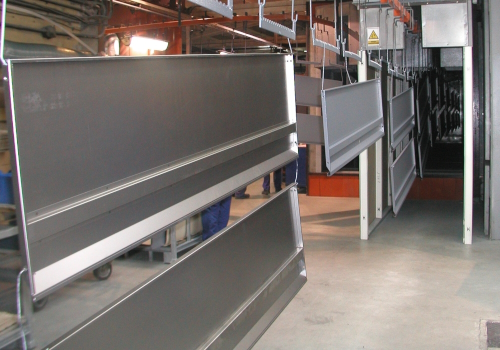

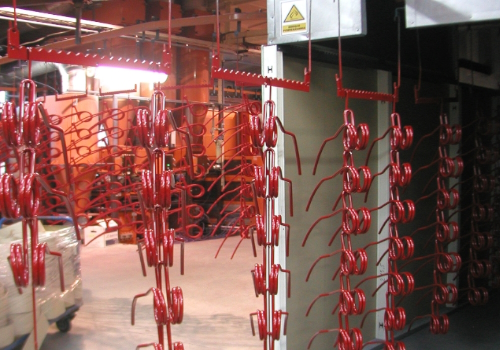

- The entire device is equipped with a suspended chain conveyor system. Closed work cycle.
